Optical Fiber Fusion Splicer (Signal Fire) — AI-9
Price upon request
Overview
Signal Fire AI-9 use the latest core alignment technology with auto focus and six motors, it is a new generation of fiber fusion splicer. It is fully qualified with trunk construction of medium and short distance, FTTH project, security monitoring and other fiber cable splicing projects.

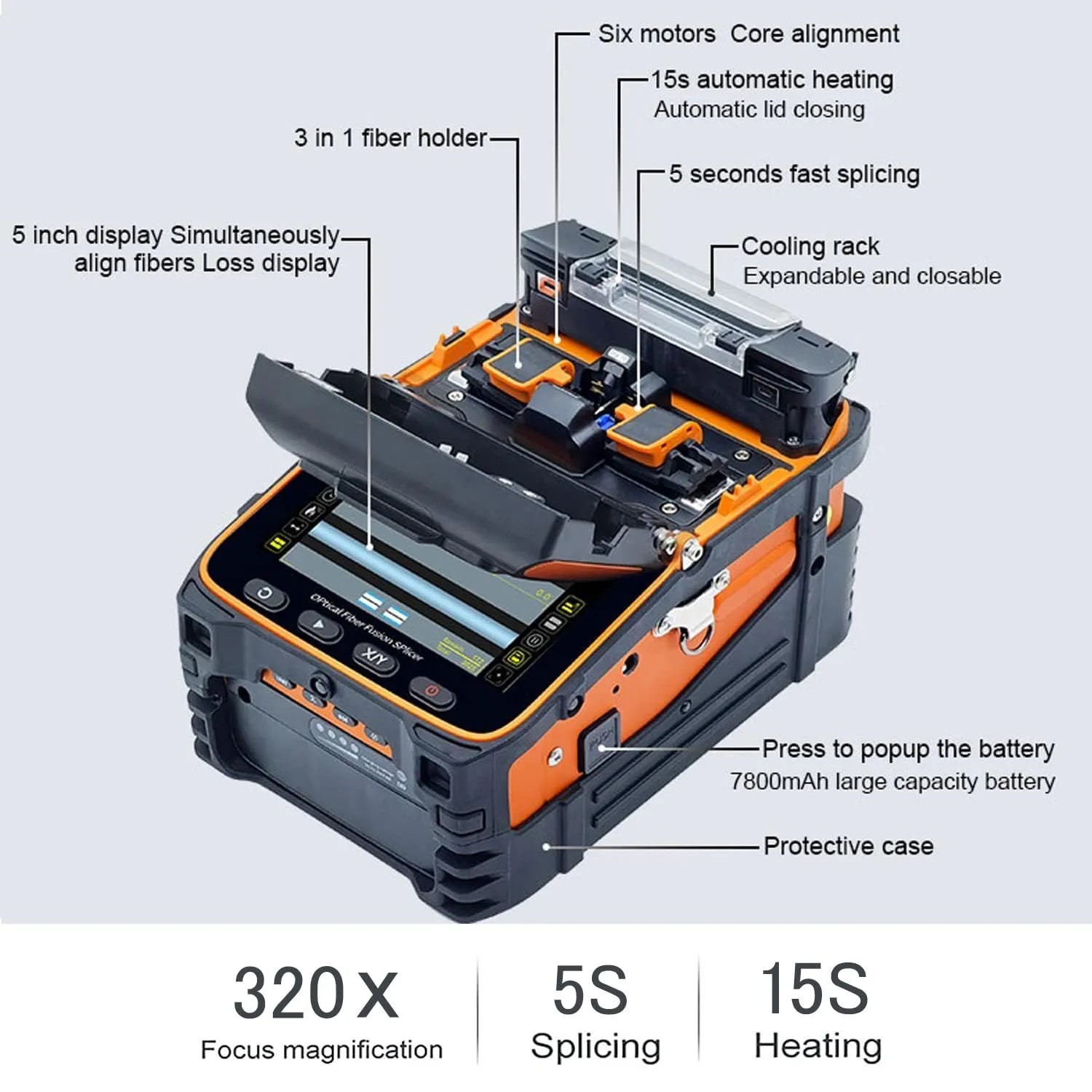

The machine uses industrial quad-core CPU, fast response, is currently one of the fastest fiber splicing machine in the market; with 5-inch 800X480 high-resolution screen, the operation is simple and intuitively; and up to 300 times focus magnifications, making it is very easy to observe the fiber with naked eyes. 5 seconds speed core alignment splicing, 15 seconds heating, the working efficiency increased by 50% compared to ordinary splicing machines.
Under the conditions of rigorous testing, the performance is still outstanding; toolbox is small, exquisite, durable, and with unique bench design. The design of operating platform reflects the humanistic care; unique lighting design, it is convenient for night construction or repair. Screen brightness is adjustable and it is convenient for outdoor sunshine environment operation.
Fusionadora (Spanish)
| Fiber alignment | Core alignment /cladding alignment / Manual alignment |
| Focus mode | Six motors, Auto focus |
| Six motors | 2 alignment mechanism motors, 2 feed carriage motors, 2 focusing mechanism motors. |
| Heating mode | Automatic heating（Preheating） |
| Applicable Fibers | SM(G.652 и G.657), MM (G.651), DS(G.657), NZDS (G.655) |
| Splice Loss | 0.025 dB (SM); 0.01 dB (MM); 0.04 dB (DS/NZDS) |
| Control technology | Real-time control and calibration of fusion ARC |
| Fiber diameter | Cladding Diameter：80-150μm Coating Diameter：100-1000μm |
| Fiber Cleave Length | Coating less than 250μm：8-16mm Coating less than 250-1000μm:16mm |
| Tension Test | Standard 2N |
| Splicing Mode | Normal / high precision splicing |
| Splicing method | Fully automatic、Step by step splicing |
| Splicing record storage | Synchronize to the phone, the server to cloud storage unlimited |

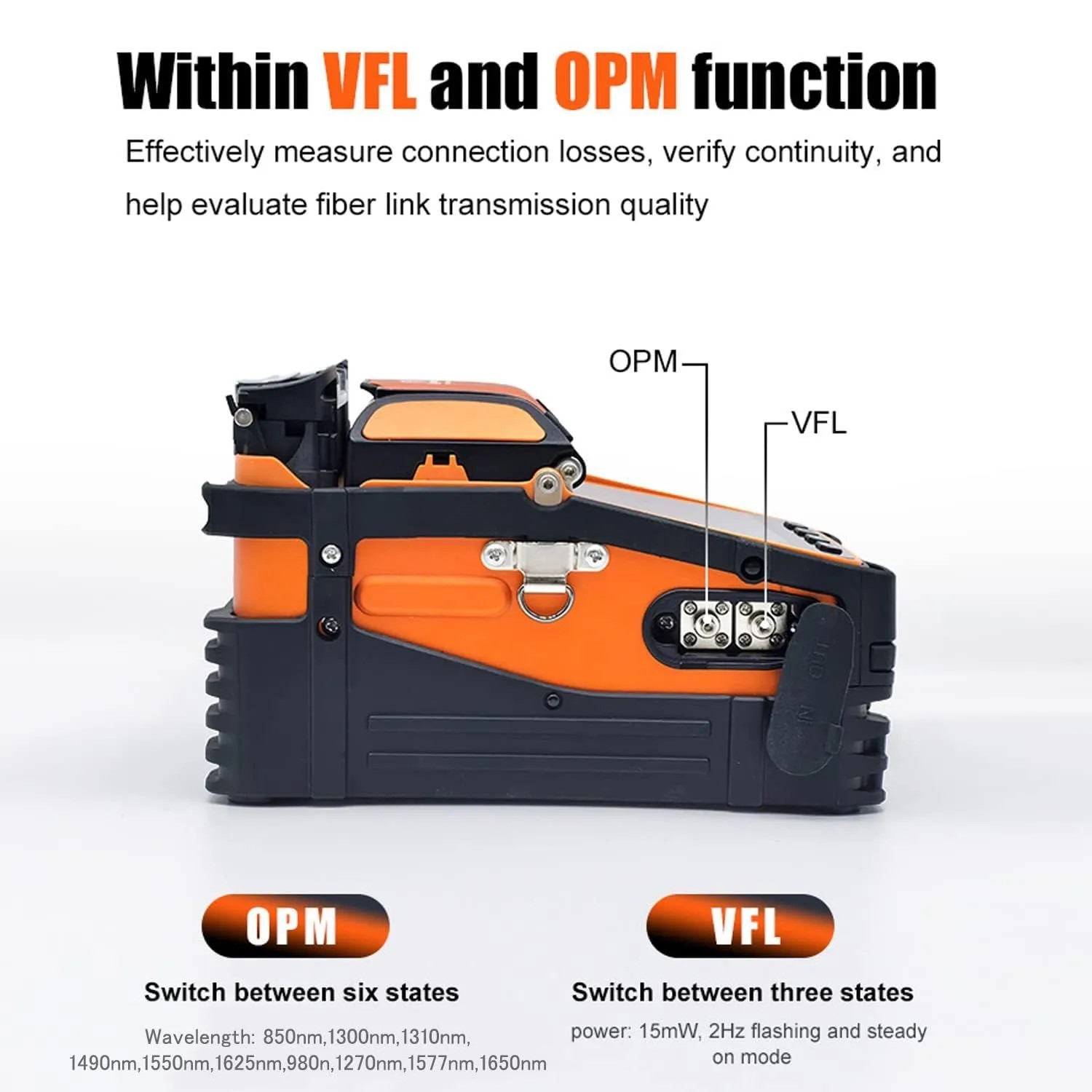

| Optical Power Meter | Wavelength:850nm、1300nm、1310nm、1490nm、1550nm、1625nm Measuring Range:-70 ~ +6db Absolute Error: less 0.3db(-50dbm ~ +3dbm Range) |
| Built-in batter | 7800 mA high-capacity lithium battery, charging time ≤ 3.5 hours, continuous splicing and heating about 200 times |
| Built-in lighting | easy for night operation |
| Software updates | Automatically update, Update by a key |
